AFFB Fluoroplastic Multi-core Wire for Aerospace Equipment High Temperature Resistant Wiring
In today's industrial landscape, wiring and connectivity solutions are required to deliver consistent performance under extreme conditions—from extreme temperature fluctuations to exposure to corrosive chemicals and high-voltage environments. As a specialized high-performance fluoroplastic cable, AFFB Fluoroplastic Multi-core Cable is engineered to meet the most rigorous industry requirements, providing reliable power and signal transmission across a wide range of demanding applications.

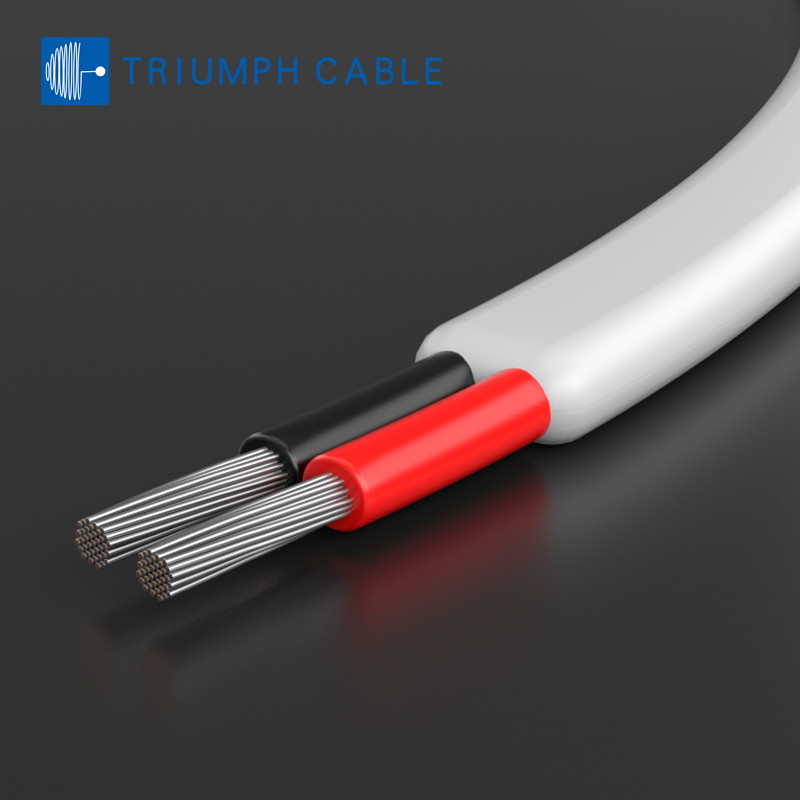

AFFB cable is a multi-core fluoroplastic-insulated and sheathed wire, designed with high-grade conductors and advanced fluoropolymer materials to deliver exceptional durability and performance. Its core technical specifications include:
Voltage Rating: 600V AC, suitable for most industrial power and control applications
Operating Temperature Range: -60°C to +200°C , enabling stable performance in both extreme cold and high-temperature environments
Conductor Material: Stranded tin-plated or silver-plated copper, offering excellent conductivity, oxidation resistance and flexibility for easy installation
Insulation & Sheath Material: FEP (fluorinated ethylene propylene, rated for 200°C continuous operation) or PFA (perfluoroalkoxy, rated for 250°C continuous operation) fluoroplastic (Teflon), delivering superior chemical and thermal resistance
Core Configurations: Available in 2 to 19 cores, with cross-sectional areas ranging from 0.12mm² to 1.0mm², to accommodate different current and connection requirements
Customization Options: Multiple color options (red, yellow, blue, white, black, yellow-green, brown, green and more) available to meet specific wiring identification needs
What sets AFFB fluoroplastic multi-core cable apart from conventional cables is its unmatched performance in harsh operating environments, thanks to its advanced material design:
**Extreme Temperature Resistance: The fluoroplastic insulation and sheath maintain stable mechanical and electrical properties across a wide temperature range, avoiding brittleness in extremely low temperatures and melting or deformation in high-temperature environments. This makes AFFB cable ideal for applications where ordinary PVC or rubber cables fail quickly.
**Excellent Chemical Corrosion Resistance: Fluoroplastics have inherent inertness to most chemicals, including oils, strong acids, strong alkalis and oxidizing agents. AFFB cable resists corrosion and degradation even when exposed to harsh chemical environments, ensuring long-term service life and reliable performance.
**Superior Electrical Insulation Performance: AFFB cable features high insulation resistance, low high-frequency signal loss, and excellent moisture resistance, maintaining stable insulation performance even in humid environments. This makes it suitable for high-voltage and high-frequency signal transmission applications.
**Excellent Fire & Aging Resistance: With a high oxygen index, AFFB cable is inherently flame-retardant, producing low smoke when exposed to fire, and has outstanding weather and aging resistance, resulting in a much longer service life than conventional cables.
**Flexible & Easy Installation: The stranded conductor design gives AFFB cable excellent flexibility, with a minimum bending radius no less than 4 times the cable outer diameter, making it easy to route and install in tight spaces or applications requiring frequent adjustments.
Thanks to its comprehensive performance advantages, AFFB fluoroplastic multi-core cable is widely used across multiple industries that demand reliable performance under harsh conditions:
**Aerospace & Aviation: Used for internal wiring of aircraft, satellites and aerospace equipment, where resistance to extreme temperatures and reliable signal transmission are critical.
**Petroleum & Chemical Industry: Applied in wiring for equipment in refineries, chemical plants and offshore drilling platforms, where it withstands exposure to corrosive chemicals and high-temperature operating environments.
**Metallurgy & Power Industry: Used in high-temperature equipment wiring, temperature measurement systems and control circuits in smelters and power plants, maintaining stable performance in continuous high-temperature operation.
**Electronics & Home Appliance Manufacturing: Serves as high-temperature heating wires, temperature compensation wires and internal wiring for high-temperature appliances, including microwave ovens, electronic disinfection cabinets, electric ovens, water heaters and lighting fixtures.
**Medical Equipment: Applied in high-temperature precision medical instruments, where it meets strict requirements for chemical resistance and electrical stability.
**Industrial Automation: Used as connecting cables for sensors, control instruments and automation systems, providing stable power and signal transmission in industrial environments.
As a professional manufacturer of high-temperature specialty cables, we produce AFFB cables in strict compliance with international quality standards, with full testing of conductor resistance, insulation performance and voltage resistance to ensure every batch of product meets specification requirements.
Welcome inquiry!
