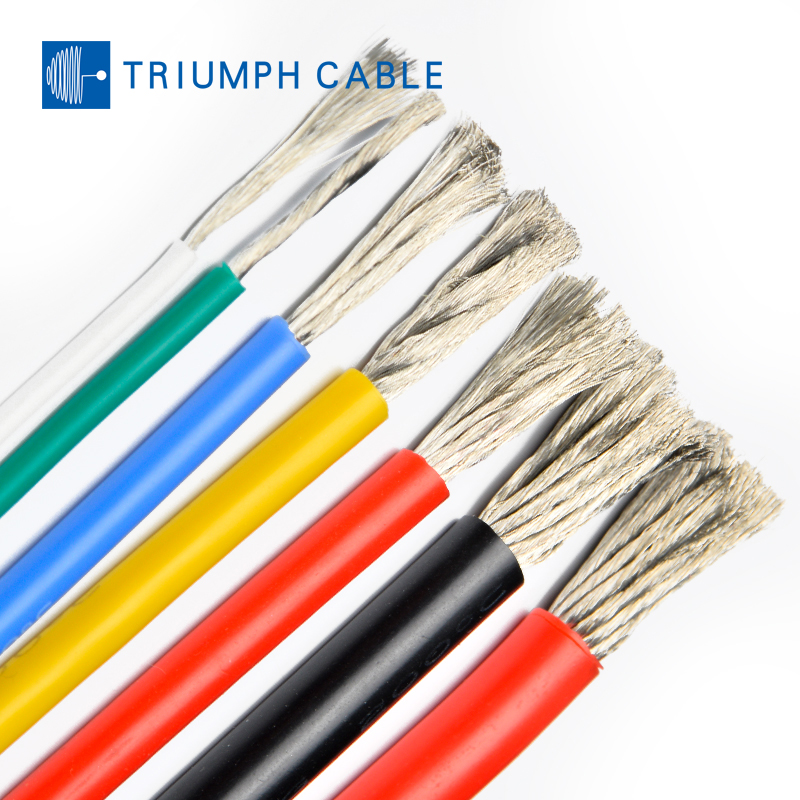

High Flexible Stranded Tinned Copper Silicone Wire
Conductor Structure: Multi-stranded tinned copper wire enhances flexibility and fatigue resistance, making it ideal for dynamic applications involving repeated bending, vibration, or motion.
Insulation Material: High-purity silicone rubber provides exceptional thermal stability, with a continuous operating temperature range of -60°C to +200°C, and short-term tolerance up to 300°C.
Rated Voltage: Typically rated for 600V
Current Carrying Capacity: For a 18 AWG (0.75 mm²) conductor, maximum allowable current reaches 22A, suitable for high-power-density systems.
Mechanical Durability: Minimum bending radius as low as 6 times the outer diameter, with high tensile strength, abrasion resistance, and tear resistance—perfect for cable chains, robotic joints, and moving assemblies.
Electrical Stability: Insulation resistance exceeds 130 MΩ·km at 20°C, with spark test voltages up to 5000V, ensuring no dielectric breakdown under stress.
The combination of tinned copper conductivity and silicone rubber’s elasticity ensures superior reliability in extreme conditions—making it the preferred choice for high-performance industrial, automotive, and aerospace applications.
