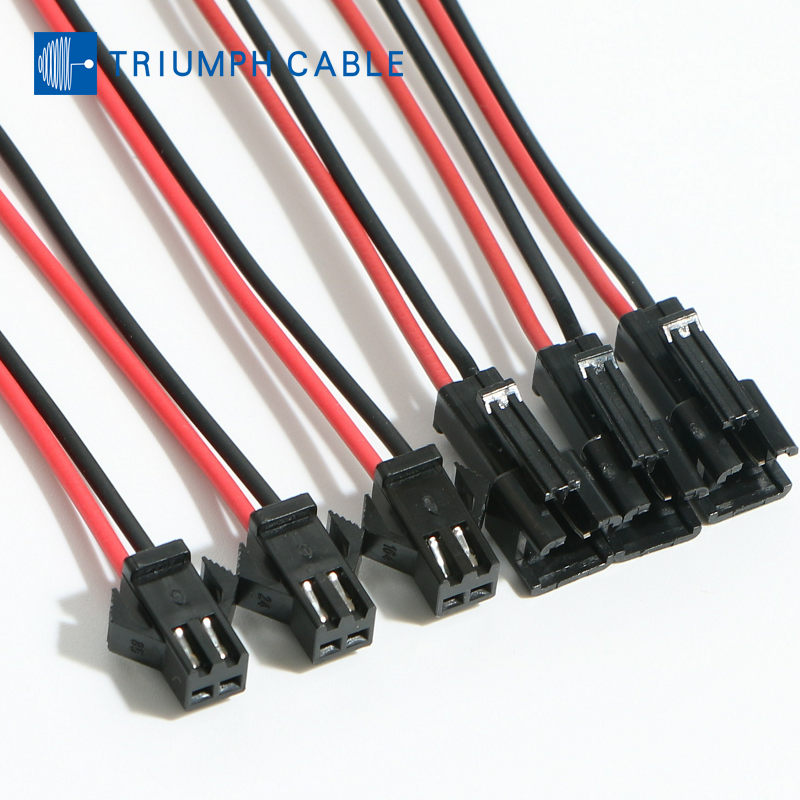

SM 2.54 male-female connector
Connector Parameters:
Male (Pin): Diameter approximately 2.54mm, length about 10mm, typically 2-10 pins, pin spacing 2.54mm.
Female (Socket): Hole diameter about 2.54mm, depth approximately 10mm, hole spacing 2.54mm, typically 2-10 holes.
Material: Copper alloy or gold-plated copper alloy, corrosion-resistant, high conductivity.
Performance Characteristics:
Contact Stability: Low contact resistance, high stability, suitable for high-frequency signal transmission.
Voltage Rating: Rated voltage up to 300V, high voltage resistance.
Temperature Range: Operating temperature range from -55°C to 125°C.
Water and Dust Resistance: Good sealing performance, suitable for humid environments.
Application Areas:
Electronic Devices: Widely used in computers, smartphones, cameras, etc.
Industrial Control: Used in PLCs, sensors, actuators, etc.
Automotive Electronics: Car audio, navigation systems, etc.
Medical Equipment: Signal transmission interfaces for medical devices.
Advantages:
Standardization: International standard, strong compatibility.
Reliability: No loosening after long-term use, high durability.
Cost-Effectiveness: Low production cost, high rate.
Precautions:
Correct Installation: Ensure male and female connectors align, avoid skewing causing poor contact.
Environmental Adaptability: Avoid extreme temperature and humidity conditions.
Welcome inquiry-Triumph Cable wireharness
