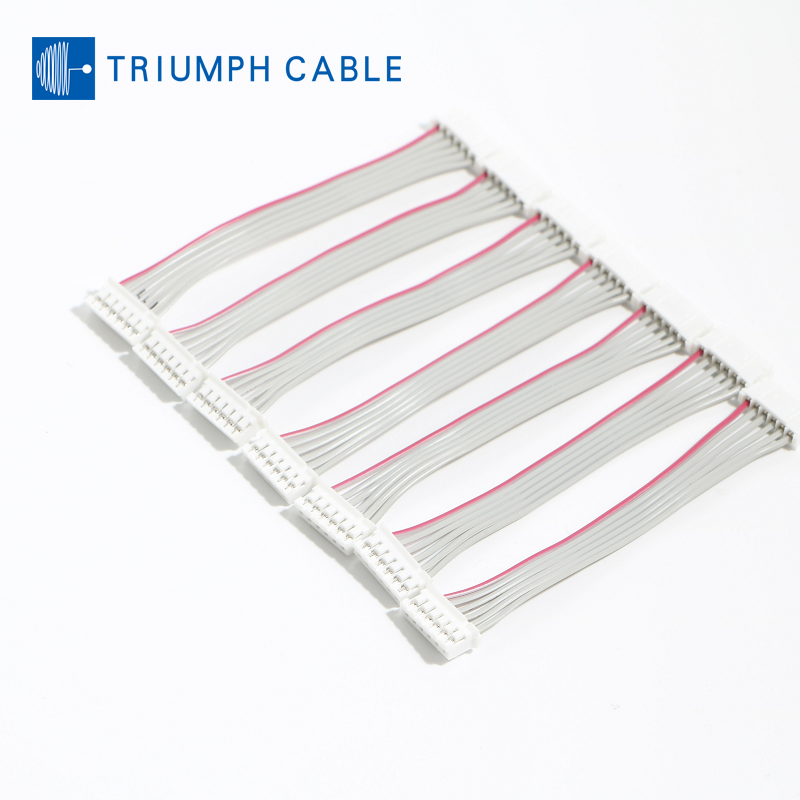

PH2.0 6P Dual-Head Gray Ribbon Cable

• ‌Electrical Characteristics‌:

  • ‌Rated Current‌: ‌0.5A to 2A‌, depending on wire gauge (AWG28: 0.5A; AWG24: 2A)
  • ‌Rated Voltage‌: ‌300V AC/DC‌, with dielectric strength tested at ‌800V/min‌
  • ‌Contact Resistance‌:Cycles‌**: StandarMating - ‌ signal loss
    ensuring minimal01Ω‌, <d version: ‌5,000 cycles‌; latch-equipped variants: ‌>10,000 cycles

• ‌Environmental Adaptability‌:

  • ‌Operating Temperature‌: ‌-25℃ to +85℃‌ (standard PVC); extended to ‌150℃‌ with silicone insulation; up to ‌200℃‌ with PTFE
  • ‌Protection Level‌: No built-in sealing; gold-plated contacts (0.3μm) significantly enhance corrosion resistance, extending salt spray endurance by over 200 hours
  • ‌Vibration Resistance‌: Latch-equipped designs reduce displacement by >70% under 10–2000Hz random vibration, ideal for automotive and industrial use

• ‌Structure and Materials‌:

  • ‌Pitch‌: ‌2.0mm‌, compliant with JST PH series standards
  • ‌Housing Material‌: ‌Gray PVC or LCP (Liquid Crystal Polymer)‌; LCP offers superior high-temperature dimensional stability

  • ‌Wire Gauge‌: Commonly ‌AWG26–AWG24‌, cross-sectional area ‌0.13–0.2mm²‌, conductor: oxygen-free copper.

  • ‌Primary Market Applications‌

  • Application Field	Typical Use Cases	Selection Criteria
    ‌Consumer Electronics‌	TWS earbud charging contacts, smartwatch battery interfaces, motherboard signal routing	Prefer AWG28 silicone wire for flex durability; current demand ≤0.5A
    ‌Drones‌	Battery-to-ESC connections, flight controller interconnects	BETAFPV and similar brands standardize PH2.0 6P for charging; requires vibration and heat resistance
    ‌Industrial Automation‌	PLC signal transmission, sensor wiring, control cabinet internal cabling	Recommend AWG24 PTFE wire for oil resistance, EMI shielding, and 2A continuous current
    ‌Smart Home‌	LED strip power, smart lock internal wiring, thermostat interconnects	Dual-head design enables modular assembly; cost-sensitive deployments favor domestic alternatives
    ‌Robotics‌	Vision camera power, gripper control signal transmission	Must integrate latch mechanism to sustain 7×24-hour high-vibration operation

  • ‌
