PH2.0 Red-Black Terminal Wire
I. Product Overview

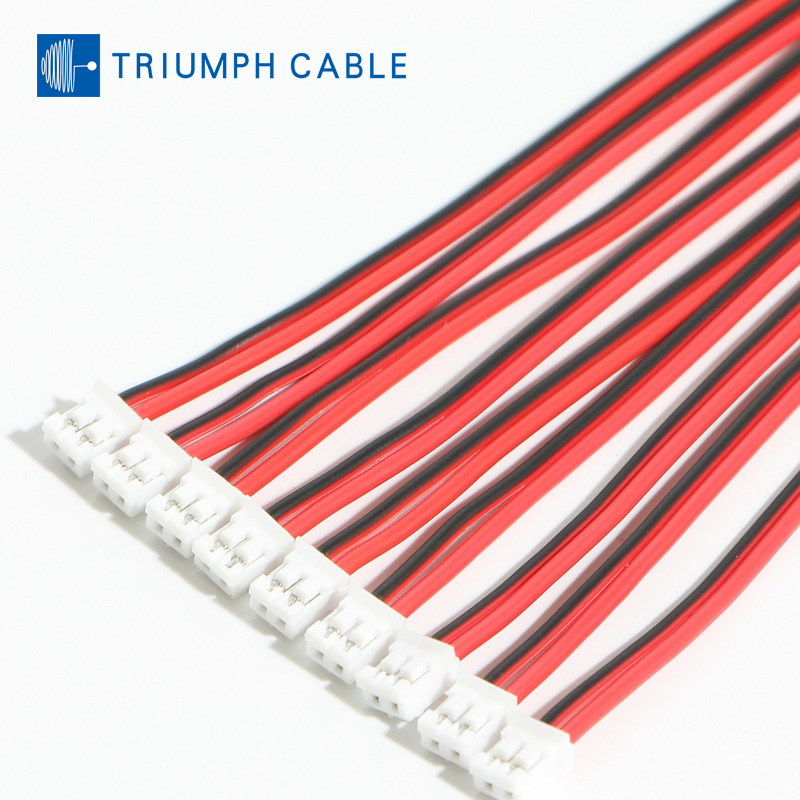

PH2.0 terminal wire is an electronic connecting wire with a 2.0mm pitch, designed in red-black dual colors, primarily used for circuit connections between electronic devices. This terminal wire features compact structure and reliable connections, widely used in various electronic products and industrial equipment.
II. Technical Specifications
1. Basic Parameters
- Pitch: 2.0mm
- Conductor Material: Zinc-plated copper/tin-plated copper
- Wire Gauge Range: AWG28-AWG24 (Cross-sectional area 0.08mm²-0.2mm²)
- Insulation Material: PVC (Temperature resistance 80°C), Silicone (150°C), Teflon (200°C)
- Rated Current: 0.5A-2A (varies with wire diameter)
- Rated Voltage: DC300V
- Flammability Rating: UL94V-0
2. Technical Parameter Comparison
| Parameter | AWG28 | AWG26 | AWG24 |
|---|
| Cross-sectional Area | 0.08mm² | 0.13mm² | 0.2mm² |
| Outer Diameter | 0.8mm | 1.0mm | 1.3mm |
| Rated Current | 0.5A | 1A | 2A |
| Peak Current | 1A | 2A | 3A |
III. Main Applications
PH2.0 red-black terminal wires are widely used in:
- Consumer Electronics: TWS headphone charging contacts, smart home device connections
- Industrial Control: PLC signal transmission (e.g., Omron CP1E modules), motor control
- Automotive Industry: Vehicle electronic equipment connections
- Household Appliances: Internal connections for heating pads, robot vacuum cleaners
- Smart Devices: Connections for smart locks, LED strips, etc.
IV. Purchase Recommendations
Wire Selection:
- Consumer electronics: Recommend AWG28 silicone wire (0.5A)
- Industrial control: Recommend AWG24 teflon wire (2A)
- High-frequency signal transmission: Suggest twisted shielded wire (AWG26)
Terminal Quality:
- Prefer tin-plated phosphor bronze terminals
- Verify plastic housing's fire rating (should meet UL94V-0)
Connection Reliability:
- Ensure proper crimping process
- Use dedicated crimping tools (e.g., JST PA-09)
V. Market Supply
According to Baidu Aicaigou data, the market price range for PH2.0 red-black terminal wires is 0.16-0.50 RMB per piece, with customization available and sufficient supply. Major suppliers include Triumph Cable manufacturers.
VI. Usage Precautions
- Use proper tools for crimping to ensure secure terminal-wire connection
- Avoid long-term use in high-temperature/high-humidity environments
- Do not mix terminal wires with different diameters
- Regularly check connection points to prevent loosening and poor contact
This comprehensive analysis of specifications and applications will help users select the appropriate PH2.0 red-black terminal wire products for their specific needs.
