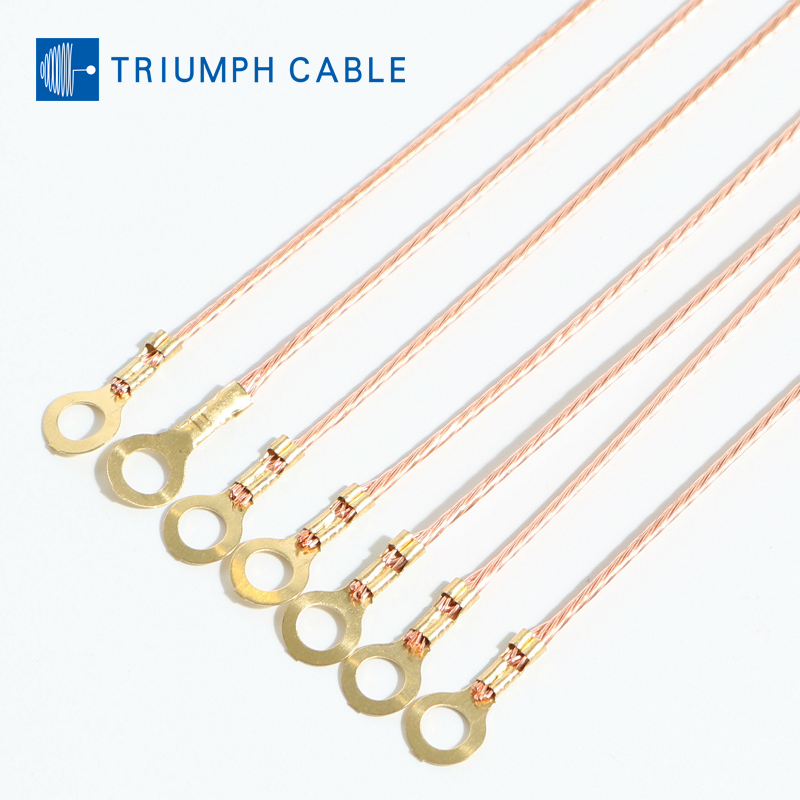

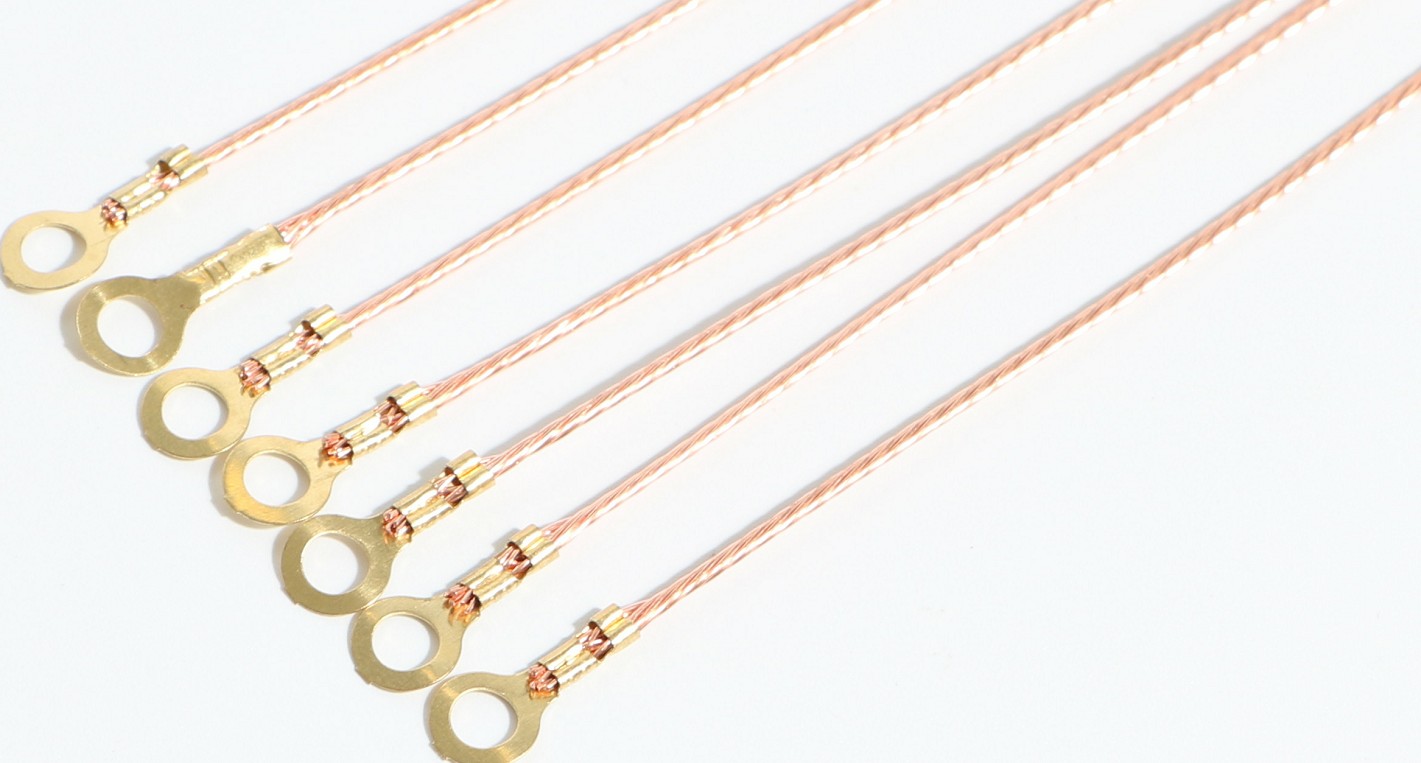

M4 Bare Copper Grounding Wire

I. Performance Characteristics of M4 Bare Copper Grounding Wire

M4 bare copper grounding wire is a commonly used grounding material in electrical engineering, with the following main performance characteristics:

Excellent Conductivity‌: Made from pure copper with a purity of 99.9% or higher, it offers excellent conductivity, second only to silver, with low resistance for efficient current transmission.

Good Flexibility‌: Copper material has excellent flexibility, making the bare copper wire easy to bend and install, suitable for various complex environments.

Cost Advantage‌: Compared to precious metal coatings, bare copper wire has relatively low cost and high cost-effectiveness.

Susceptibility to Oxidation‌: The biggest drawback of bare copper wire is that it oxidizes easily in air, forming copper patina or copper oxide on the surface, which increases contact resistance and affects conductivity. Therefore, bare copper wire is typically used inside equipment, in vacuum or nitrogen-sealed environments.

Mechanical Strength‌: Bare copper wire has good mechanical strength, capable of withstanding certain tensile and bending stresses.

II. Main Uses of M4 Bare Copper Grounding Wire

M4 bare copper grounding wire has several important applications in electrical engineering:

Safety Protection‌: Used to conduct leakage current from equipment into the ground, preventing electric shock accidents and other serious incidents. When equipment develops leakage, the grounding wire safely conducts the leakage current into the earth, protecting personnel.

Lightning Protection‌: Serves as part of lightning protection systems. Through grounding conductors, lightning current is safely conducted into the ground, preventing lightning strike damage to buildings and equipment.

Distribution System Connections‌: Provides low-impedance connections between equipment and grounding systems in distribution networks, reducing the risk of electric shock injuries.

Equipment Grounding‌: Provides grounding connections for metal enclosures and components of electrical equipment, ensuring safe operation.

Reference Grounding for Electronic Devices‌: Provides a stable reference ground for electronic equipment, ensuring accuracy and stability of operation.

III. Meaning of M4 Specification

Regarding the specific meaning of "M4" specification, the search results provide the following information:

In screw specifications, M4 denotes a thread with a nominal diameter of 4mm.

For grounding wire products, "M4" may represent a specific specification or model, but the search results do not clearly show its specific parameter meaning in grounding wires.

According to electrical safety standards, the multi-stranded soft bare copper wire used for grounding must have a cross-sectional area of no less than 25mm², but the search results do not mention the specific parameters corresponding to the "M4" specification.

IV. Technical Parameters and Usage Precautions

Cross-Sectional Area Requirements‌: According to electrical safety standards, the multi-stranded soft bare copper wire used for grounding must have a cross-sectional area of no less than 25mm².

Current-Carrying Capacity Reference‌: A 4mm² copper core conductor has a theoretical current-carrying capacity of about 25-32 amperes at room temperature, but in practical applications, installation environment factors must be considered.

Usage Environment‌: Due to its susceptibility to oxidation, it is recommended for use inside equipment, in vacuum or nitrogen-sealed environments.

Installation Requirements‌: Grounding wire installation should ensure firm connections, low contact resistance, and proper corrosion protection.

Maintenance Inspection‌: Regularly inspect the connection status and oxidation condition of the grounding wire to ensure the grounding system's reliability and effectiveness.

In summary, M4 bare copper grounding wire is a high-performance grounding material widely used in electrical safety protection and lightning protection systems. However, its susceptibility to oxidation must be considered during use, and installation standards must be followed. For the specific parameter meaning of the "M4" specification in grounding wires, consulting Triumph Cable suppliers for more detailed technical information is recommended.
