Triumph Cable--- JC25 terminal wire

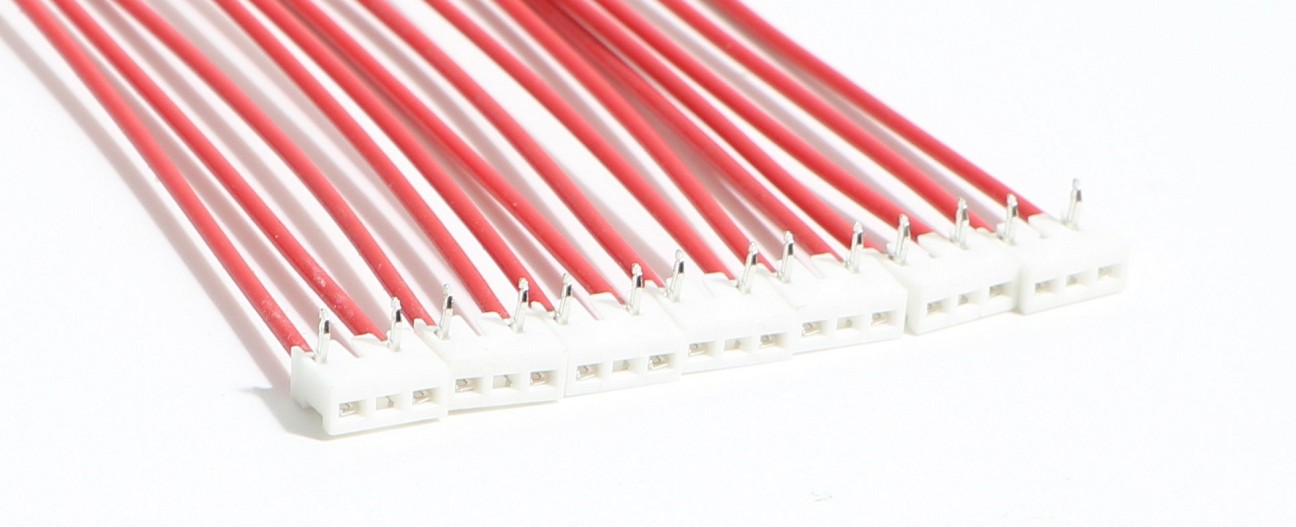

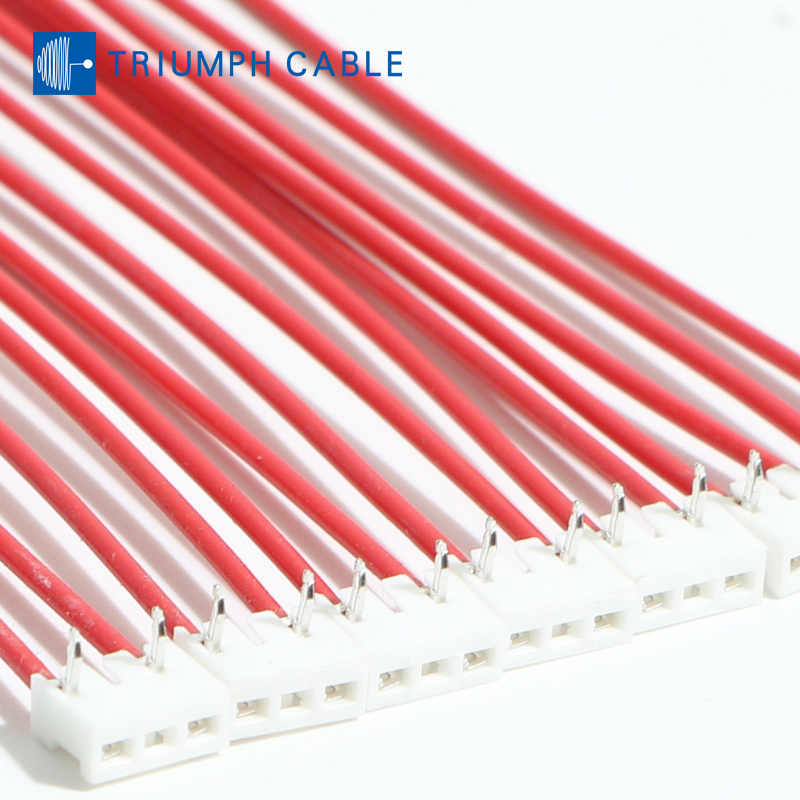

The JC25 terminal wire is a 2.5mm-pitch wire-to-board connector, featuring the following characteristics and applications:

Main Features
- Structural Design: Uses a 2.5mm-pitch strip connector, supporting 2-16 positions, with brass pins and phosphor bronze terminals, ensuring reliable contact.
- Electrical Performance: Rated current of 2.0A, voltage 250V AC/DC, operating temperature range of -25℃ to 85℃, insulation resistance ≥100MΩ.
- Process Advantages: Some models use high-precision crimping technology, increasing tensile strength by 40% and reducing contact resistance by 30%, suitable for high-temperature environments.

Typical Applications
- Electronic Devices: Used for PCB-to-PCB connections, such as microcontrollers, LED displays, power modules, etc.
- Industrial Field: Suitable for industrial control equipment, sensors, PLCs, and other signal transmissions.
- New Energy: Some models are specially designed for new energy harnesses, such as photovoltaic inverters and motor controllers.
