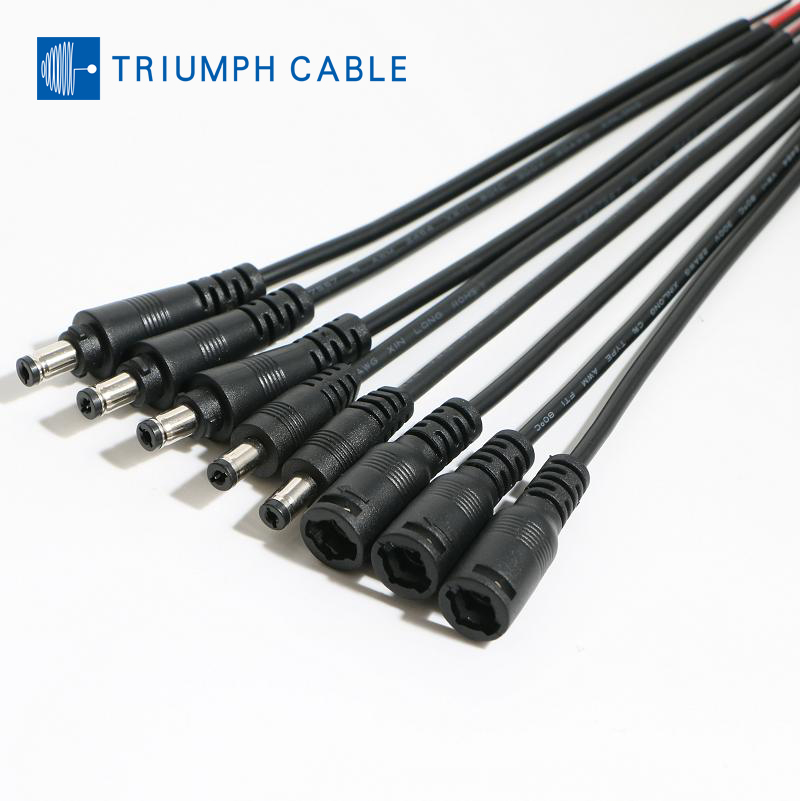

Triumph Cable-DC5521 Power Cables

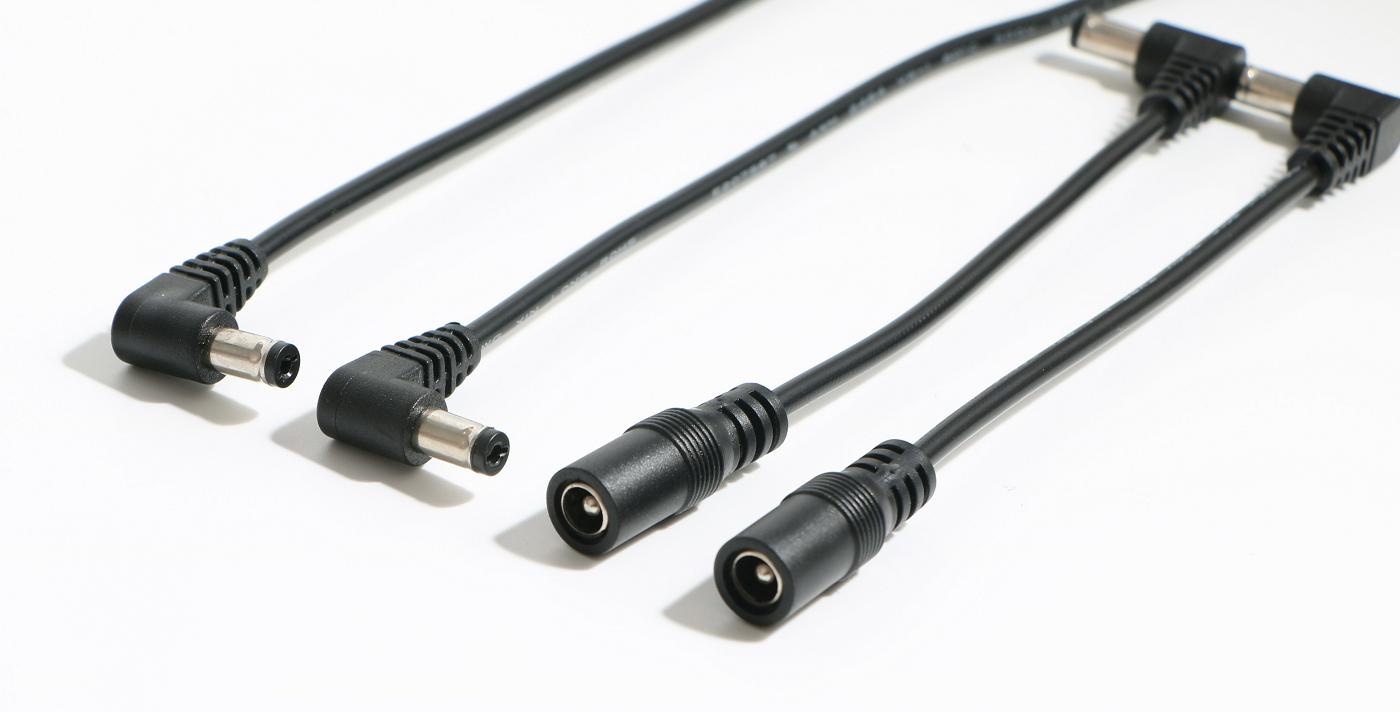

DC5521 power cable is a common round DC power connection wire widely used in various small electronic devices. Below is a detailed introduction to the characteristics of this cable from multiple aspects.

I. Basic Description of DC5521 Power Cables

The DC5521 power cable adopts a 5.5×2.1mm interface design with an outer diameter of 5.5mm and an inner diameter of 2.1mm, featuring a standardized DC power connection interface. This simple and highly compatible interface design can effectively transmit low-voltage DC power, ensuring stable operation of devices. The main difference between DC5521 and DC5525 interfaces lies in the inner diameter size (2.1mm for 5521 vs. 2.5mm for 5525) and power carrying capacity (with 5521 having relatively lower power capacity).

II. Technical Specifications

The main technical parameters of DC5521 power cables include:

III. Main Application Scenarios

DC5521 power cables are widely used in the following device categories:

1. ‌Security Monitoring Equipment‌: Power connections for surveillance cameras, DVR/NVRs, etc.
2. ‌Consumer Electronics‌: Some set-top boxes, LED desk lamps, digital home appliances
3. ‌Outdoor Power Supplies‌: DC output interfaces for small outdoor power supplies
4. ‌Industrial Equipment‌: Control lines for low-power DC industrial devices
5. ‌Other Applications‌: Electric toothbrush chargers, electric heating products, etc.

IV.Usage Precautions

Interface Matching‌: DC5521 male connectors should match DC5521 female connectors; mixing with DC5525 interfaces may cause poor contact

Power Limitations‌: Not recommended for devices exceeding 3A current

Wire Selection‌: Choose appropriate wire gauge (0.3-0.5mm²) based on device power requirements

Environmental Suitability‌: For outdoor use, waterproof models are recommended

Due to its versatility and stability, DC5521 power cables have become one of the standard power interfaces for many small electricnic devices, with wide applications in both consumer electronics and industrial fields.

Welcome to inquiry pls.
