1.25-3P Double-Head Connection Cables

Product Overview

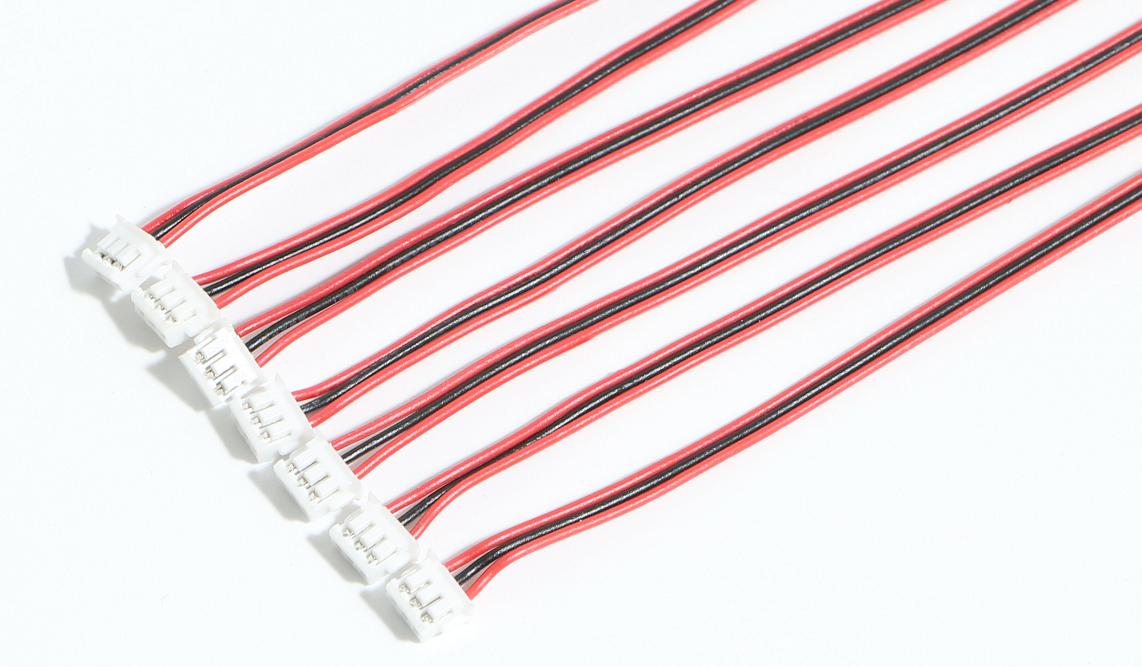

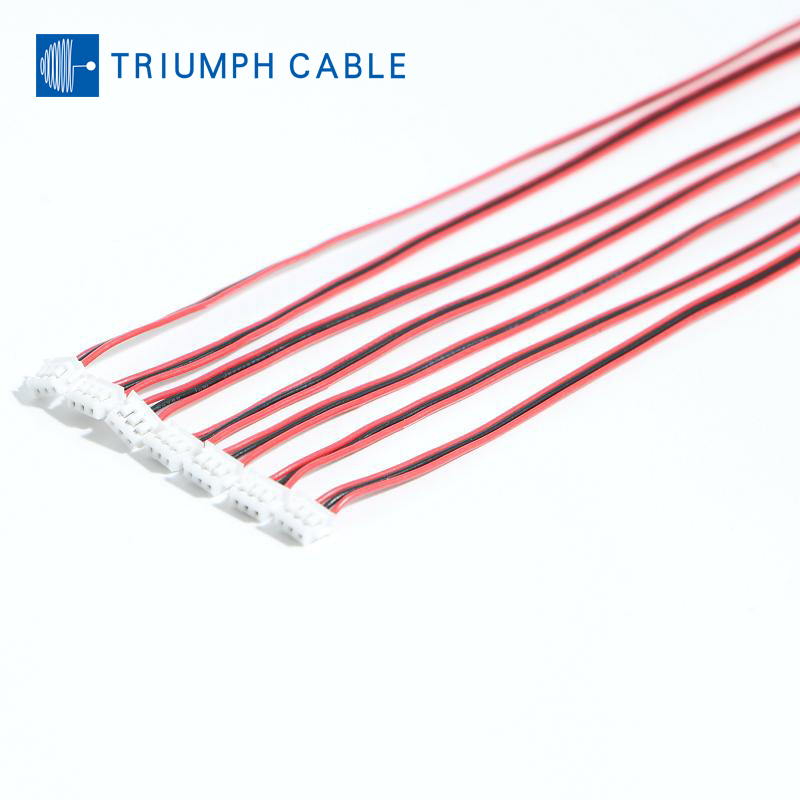

The 1.25-3P double-head connection cable is an electronic interconnect cable primarily used for connecting circuit boards. The 1.25mm pitch connector with 3P (3-pin) configuration comes in single-head and double-head types, with cable lengths typically ranging from 15cm to 50cm. This compact connector design saves approximately 45% of printed circuit board space compared to 2.00mm pitch products.

Technical Specifications

• ‌Pitch‌: 1.25mm
• ‌Pin Count‌: 3P (3 pins)
• ‌Rated Current‌: Typically below 1A
• ‌Rated Voltage‌: 125V
• ‌Contact Resistance‌: 30mΩ
• ‌Dielectric Withstand Voltage‌: 500V AC/minute
• ‌Operating Temperature Range‌: -40℃ to 105℃

Primary Applications

1.25-3P double-head connection cables are widely used in:

• ‌Consumer Electronics‌: For internal circuit connections in small electronic devices
• ‌Automotive Electronics‌: For low-current connections in vehicle electronic equipment
• ‌Industrial Control‌: Suitable for low-current, low-voltage applications
• ‌LED Lighting‌: Used for connecting LED strips and lighting equipment

Application Cases

1. ‌Automotive Electronics Applications‌:

   • Internal circuit connections for vehicle chargers
   • Signal transmission in automotive electronic control units (ECU)
   • Internal connections for vehicle entertainment systems

2. ‌Consumer Electronics Applications‌:

   • Control board connections for small household appliances
   • Internal circuits for smart home devices
   • Internal connections for portable electronics

Product Advantages

1. ‌Space Savings‌: 1.25mm pitch design saves about 45% PCB space compared to 2.00mm systems
2. ‌Reliability‌: Two-point contact design ensures reliable connections even under vibration
3. ‌Flexibility‌: Supports single-wire and crimped harness assemblies
4. ‌Compatibility‌: Works with full series of automatic, semi-automatic, and manual tools

Purchase Recommendations

1. Choose between single-head or double-head models based on application
2. Confirm compatibility with required voltage and current specifications
3. Consider cable length and connection direction (in-line/reverse)
4. Evaluate the connector's locking mechanism (especially important for vibration environments)
