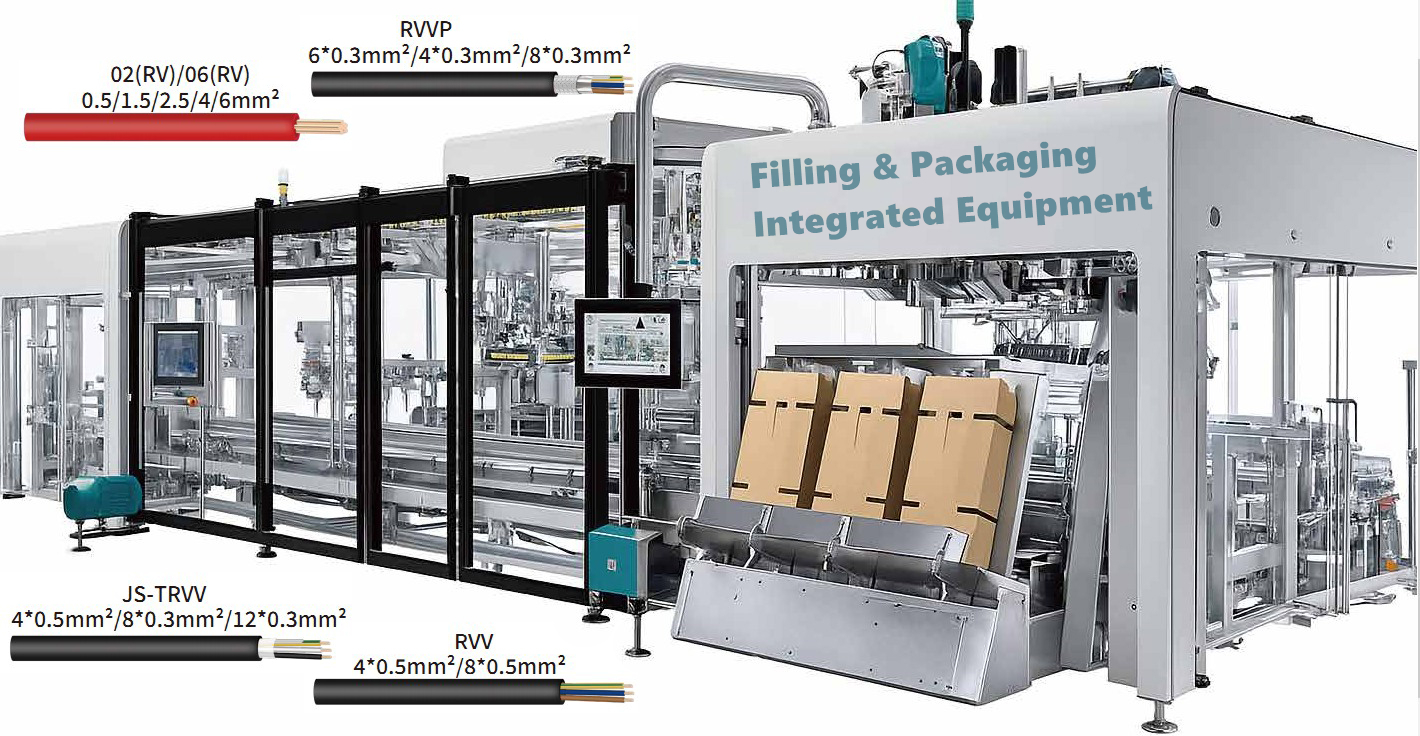

How to choose a cable solution for the line plan of filling and packaging integrated equipment?

1. Common Cable Types for Filling & Packaging Integrated Equipment

1. ‌Power Cables‌

   • ‌RV Cable‌: Copper-core PVC insulated flexible wire, rated for 450/750V, featuring flexibility and bend resistance, suitable for power connections in filling machines.
   • ‌Example Specifications‌: AC220V±10% 50Hz, meeting the power requirements of filling equipment.

2. ‌Control Cables‌

   • ‌ZR-RVV Flame-Retardant Control Cable‌: Multi-core copper PVC insulated cable for signal transmission and control systems, with flame-retardant properties ideal for automated control in filling equipment.
   • ‌Example Specifications‌: ZR-RVV-30*0.75 (30 cores, 0.75 mm² per core).

3. ‌Industrial Drag Chain Cables‌

   • Used for power transmission in moving parts (e.g., filling head reciprocation), requiring high flexibility and abrasion resistance.
   • ‌Common Models‌: TRVV (PVC-sheathed drag chain cable).

4. ‌High-Temperature Cables‌

   • ‌Teflon High-Temperature Cable (e.g., AF250 FF46-2)‌: Resistant to high temperatures (200°C+) and corrosion, suitable for hot sealing or sterilization modules.
   • ‌Features‌: Silver-plated copper core, UL-certified (e.g., UL1332).

2. Application Scenarios & Performance Requirements

1. ‌Power Connections‌
   • Use RV or EV cables with oil resistance and flexibility for frequent movement and humid environments.
2. ‌Signal Control‌
   • ZR-RVVP cables for PLC signal transmission; shielded variants (e.g., ZR-RVVP) for noise immunity.
3. ‌Moving Parts‌
   • Drag chain cables (e.g., TRVV) must meet high flexibility and tensile strength requirements.
4. ‌High-Temperature Zones‌
   • Teflon cables for hot sealing/sterilization; confirm temperature range (e.g., 200°C for Teflon, 150°C for silicone).

3. Cable Selection Recommendations

• ‌Power Cables‌: Prioritize RV/EV series; cross-section depends on power (e.g., 1.5–4 mm²).
• ‌Control Cables‌: Match core count to control points (e.g., 24 cores for multi-station control).
• ‌Drag Chain Cables‌: Choose TRVV or PUR-sheathed models for enhanced durability.
• ‌High-Temperature Cables‌: Verify operating temperature (e.g., Teflon for 200°C+, silicone for 150°C).

For further details on electrical parameters or installation standards, consult industrial cable selection manuals or contact manufacturers for customized solutions.
