"I will provide you with a comprehensive and in-depth analysis of UL2468 flat cables, covering their definitions, structures, performance parameters, and quality identification methods."

（Quality Leader of TRIUMPH CABLE Industrial Cables  Gao Mingfu）

This article will conduct an in-depth analysis of UL2468 flat cables from multiple dimensions, covering their definitions, naming conventions, structural features, performance parameters, application scenarios, and quality identification methods. It aims to provide an authoritative and practical selection and testing guide for purchasing personnel and engineering technicians.

I. Introduction: The Industry Status of UL2468 Flat Cables

As the global electronics manufacturing industry accelerates towards intelligence and miniaturization in 2025, there is a significant increase in demand for high-density and high-performance internal connection cables in fields such as smart homes, new energy vehicles, and industrial automation. UL2468 flat cables, which comply with UL safety certifications and offer good flexibility and wiring adaptability, have become one of the mainstream cable types in consumer electronics (such as display devices and LED lighting) and industrial control systems. Their high cost-effectiveness and stable performance have secured them an important position in global electronic connection solutions.

II. Analysis of UL Certification Standards

UL certification is an authoritative guarantee of product safety. UL2468 flat cables must meet the following core standard requirements:

Basic Standards:

• UL 758-2022 (Electronic Wire Standard)
• UL 1581-2023 (Insulating Material Testing Standard)

Flame Retardancy:

• Pass the UL VW-1 and CSA FT1 vertical flame retardancy test ratings.

Environmental Compliance:

• Comply with the RoHS Directive, restricting the use of harmful substances such as lead, cadmium, and mercury.

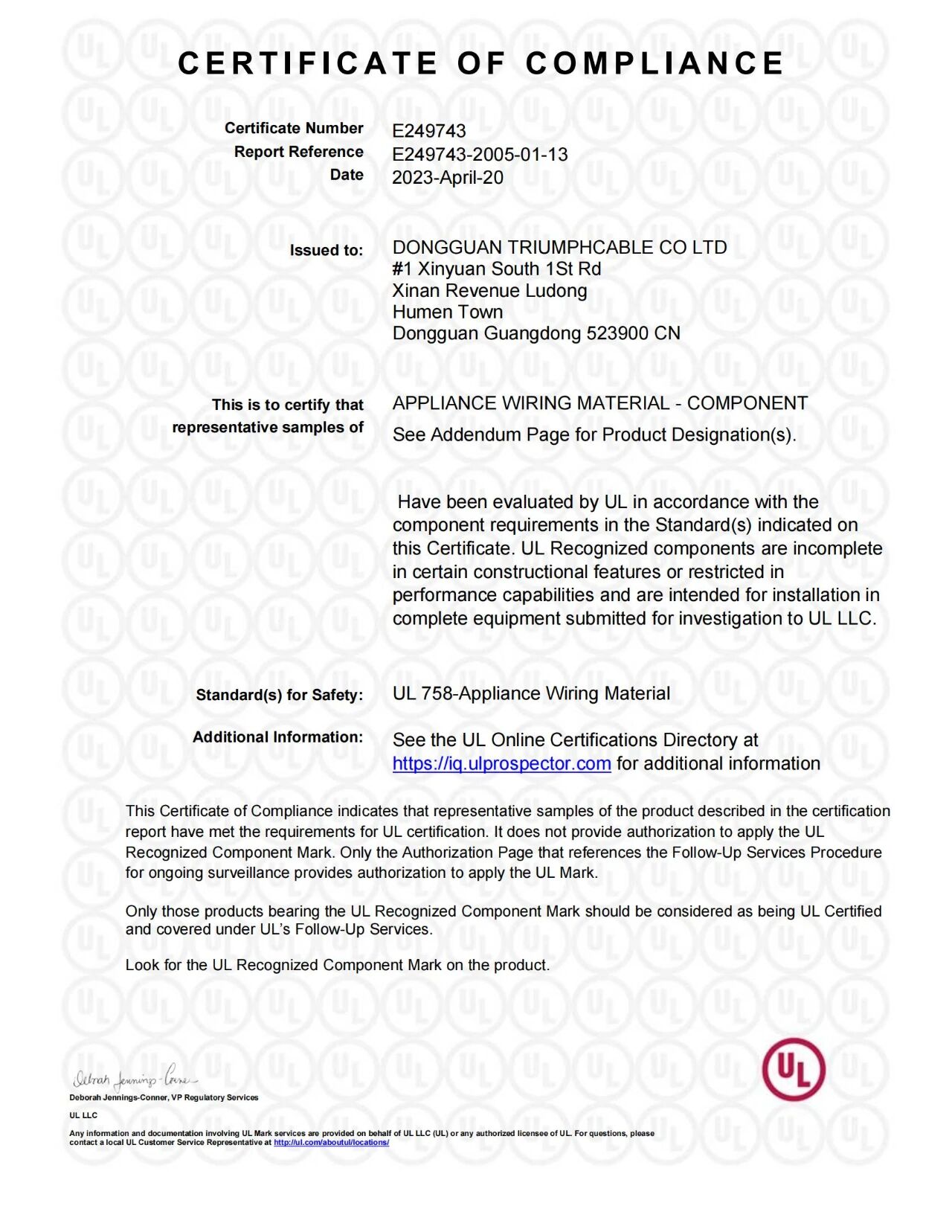

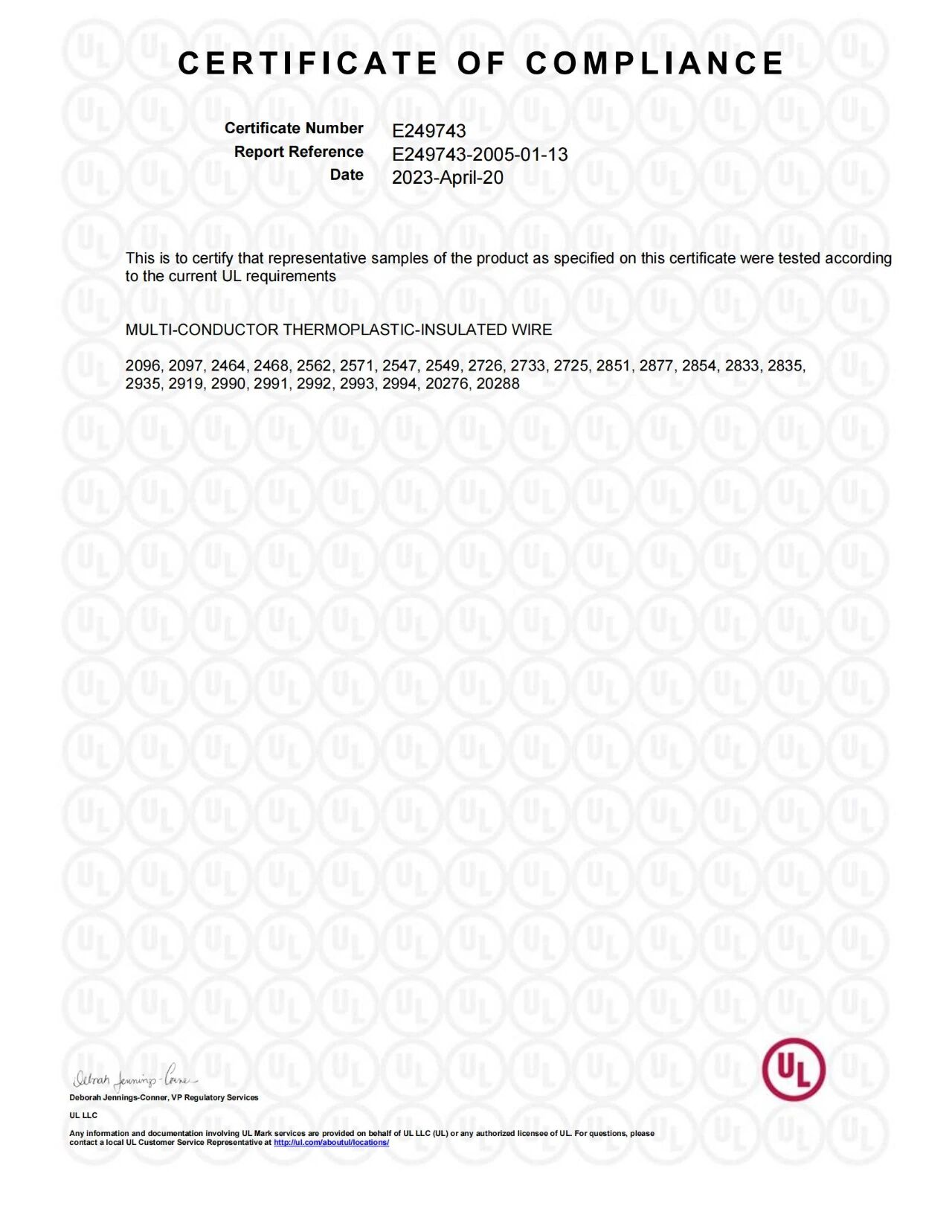

Certification Mark Verification Method:

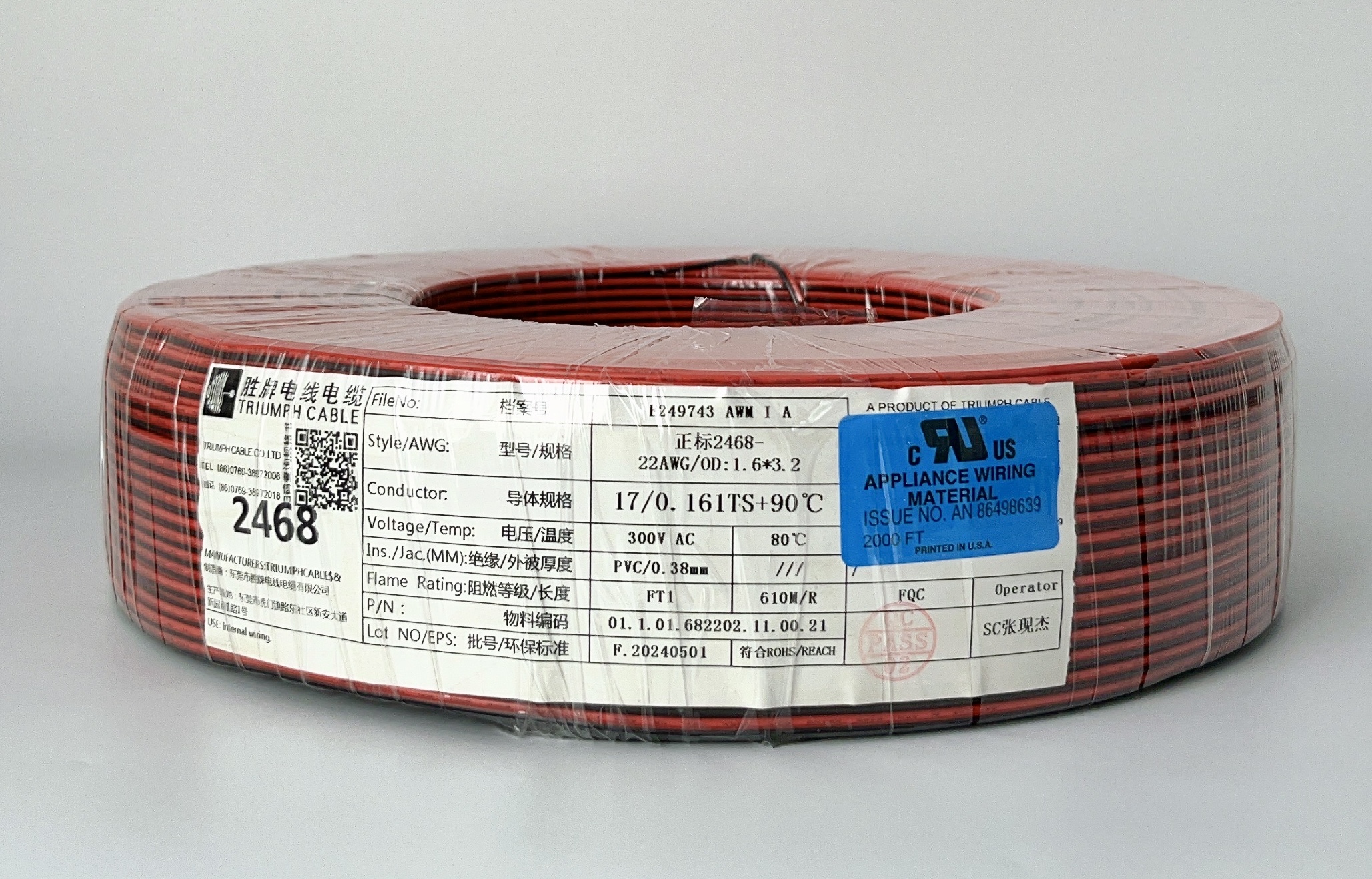

• Legitimate UL2468 cables should be printed with:
  • UL Logo
  • E-number (unique certification number)
  • Specification information (e.g., "UL2468 24AWG")
• It is recommended to verify the certification status through UL's "Product iQ®" system to prevent purchasing counterfeit products.

III. Naming Conventions and Structural Features

1. Interpretation of Naming

• "UL2468": Indicates the UL Style number followed by the cable.
• "24AWG": Represents the American Wire Gauge, where a smaller number indicates a thicker conductor (common specifications include 28/26/24/22/20AWG).
• Color Identification:
  • Red-Black Bicolor Cable: Exclusively used for power lines (in DC systems, red often indicates the positive pole, and black the negative pole). The conductor is usually made of tinned copper to enhance conductivity stability.
  • Blue-White Bicolor Cable: Identifies signal transmission lines (such as data communication and sensor signal transmission), optimized for anti-interference performance, suitable for low-voltage precision scenarios.
  • Black-White Bicolor Cable: Serves as a general-purpose functional line (compatible with ground lines, neutral lines, or spare lines), offering both flexibility and multi-scenario adaptability.
  • Color differentiation can improve wiring efficiency by over 30% and significantly reduce the risk of maintenance errors (such as short circuits caused by mixed colors).

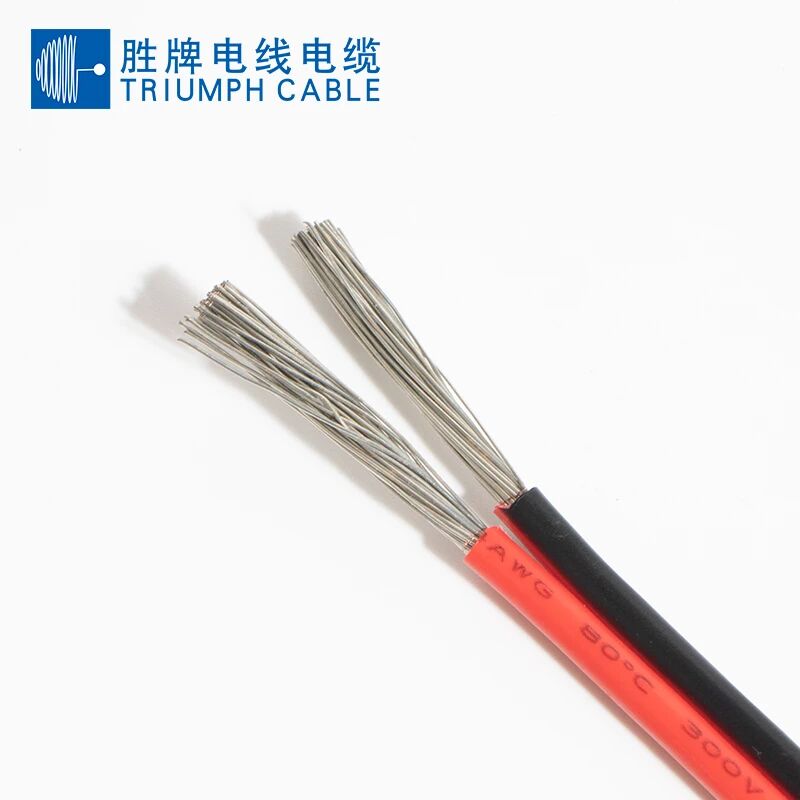

2. Conductor Structure

• Material Selection: High-purity oxygen-free copper is commonly used as the conductor, with a tinned surface for stronger oxidation resistance. Under the same cross-sectional area and length conditions, its conductor resistance is relatively low, making it suitable for harsh environments.
• Structural Process: Multi-stranded twisted copper wires (e.g., 24AWG commonly uses a 7×0.203mm structure) enhance flexibility and fatigue resistance.
• Identification Points:
  • The cross-section of tinned copper should appear light purplish-red; if it is white, it may be an aluminum-core counterfeit product.
  • The conductor should be composed of multiple fine strands; single copper wires are often indicative of inferior cable quality.

3. Insulation Structure

• Materials:
  • Commonly used PVC (withstands temperatures up to 80°C), eco-friendly PVC.
• Physical Characteristics:
  • Outer diameter: approximately 1.32mm
  • Line spacing: 0.15mm (ensuring high-density wiring)
  • Smooth surface without particles, uniform insulation thickness (standard approximately 0.45mm)

IV. Analysis of Performance Parameters

4.1 Rated Voltage and Voltage Resistance Performance:

UL2468 flat cables have a rated voltage of 300V, suitable for medium- and low-voltage electrical systems, such as LED lighting, industrial control signal lines, and internal connections in consumer electronics.

4.2 Operating Temperature Range (-30°C to +80°C):

• UL2468 cables are designed to maintain flexibility and insulation performance in low-temperature environments down to -30°C, making them suitable for outdoor LED displays and industrial equipment in cold regions.
• The maximum long-term operating temperature is 80°C. For use in higher-temperature environments, it is recommended to select high-temperature-resistant silicone cables (such as UL3135).

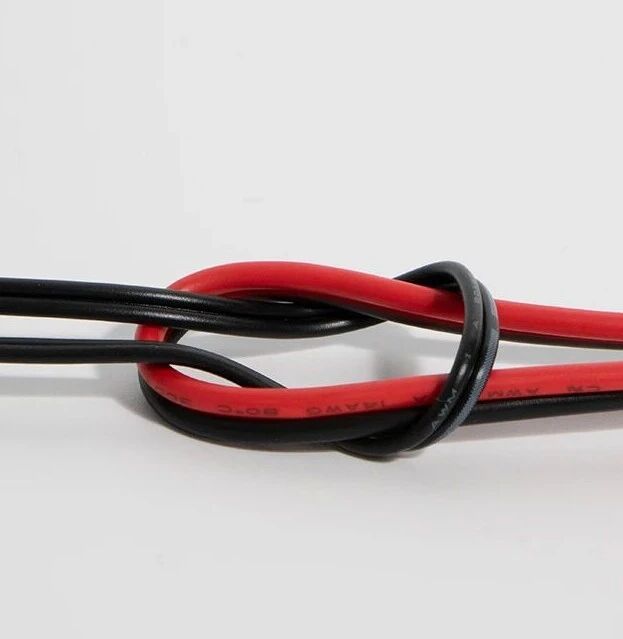

4.3 Mechanical Performance:

• 6 times the outer diameter (short side) bending life ≥ 5000 times, indicating good flexibility and fatigue resistance, suitable for dynamic component connections in printers and robotic arms.
• The insulation layer has good resistance to stretching and tearing, ensuring the cable is not easily damaged during installation and use.

V. Four-Step Quality Identification Method

1. Structural Inspection

• Peel off the insulation layer and observe whether the conductor is a multi-stranded twisted wire; avoid single-strand copper wire cables.
• Use a caliper to measure whether the line spacing is the standard 0.15mm; uniform line core spacing is an important indicator of stable craftsmanship.

2. Certification Authenticity Verification

• Verify whether the UL E-number printed on the cable body matches the UL certification provided by the supplier (such as conductor specifications, insulation materials, and test results).

3. Material Performance Testing

Flame retardancy testing is a core环节 (which can be translated as "aspect" or "part" depending on context, but here "aspect" is used for clarity) to ensure the safety performance of wires under fire risk. Its purpose is to evaluate the combustion characteristics of wires when exposed to fire (such as combustion speed, self-extinguishing ability, and the risk of ignition from dripping materials) to delay the spread of fire and reduce safety hazards.

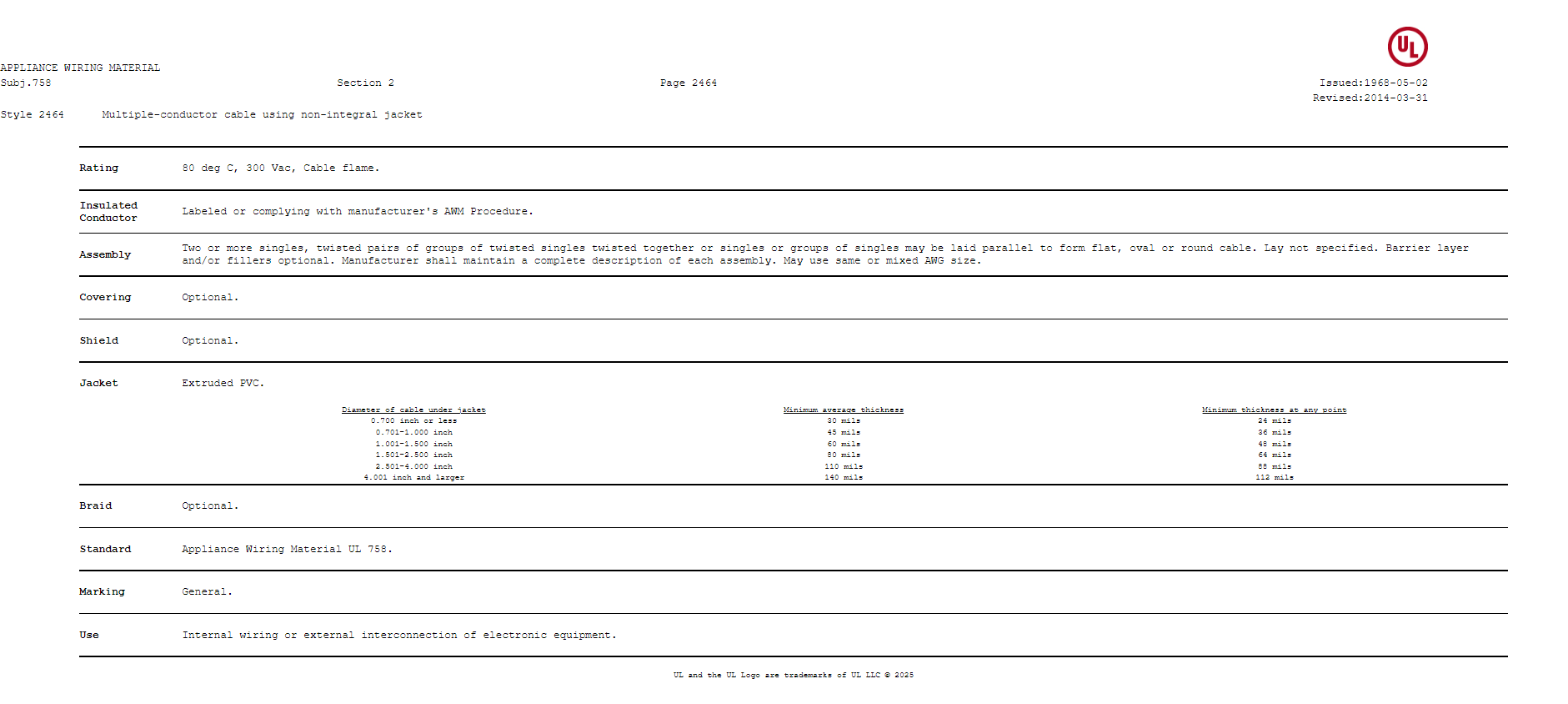

UL2468 Flame Retardancy Testing:

Cable Flame

 VW-1 Vertical Combustion Test

• Test Conditions:
  1. Flame application time: 15 seconds
  2. Number of flame applications: 5 times
  3. Flame height: 125±10mm
  4. Inner flame height: 40±2mm
• Judgment Criteria:
  1. Combustion drippings must not ignite the cotton at the bottom.
  2. After each flame application, the specimen must not continue to burn for more than 60 seconds.
  3. Carbonization and scorching of the indicator flag must not exceed 25%.

Environmental Testing:

• Request the supplier to provide an SGS material report to confirm the purity of the copper material and the environmental friendliness of the PVC.
• Recommended Certified Factories:
  • Prioritize manufacturers that have passed ISO9001 quality management system certification and UL WTDP (Witness Testing Data Program).

VI. Application Scenarios and Selection Recommendations

1. Recommended Application Areas

• High-Density Wiring Needs:
  • Instrumentation, PCB board-to-board connections
  • LED displays, smart home appliance control boards
• Dynamic Bending Environments:
  • Printer print heads, robotic arm wire harnesses
  • Internal moving component connections in automation equipment

2. Selection Pitfall Avoidance Guide

• Temperature Limitations: Not recommended for use in environments exceeding 80°C (such as automobile engine compartments); high-temperature-resistant silicone cables (such as UL3135) should be selected instead.
• Customization Recommendations: Most cables on the market are even-numbered core cables (such as 2/4/6/8 cores); odd-numbered core cables (such as 3/5/7 cores) require special customization.
• Wire Diameter Selection: Select the AWG specification based on the current load; 24AWG is suitable for medium-current scenarios, while 20AWG is suitable for high-current transmission.

VII. Conclusion

UL2468 flat cables are not just a standardized electronic connection solution but also an important component ensuring the long-term stable operation of equipment. Their core advantages include:

• Standardized Production Process: Ensures consistent performance across each batch of cables.
• Strong Traceability: Guarantees product quality origin through UL certification and factory audits.
• High Reliability and Flexibility: Adapts to complex wiring and dynamic application environments.
• Environmental Compliance: Meets international standards such as RoHS and REACH, suitable for exported products.

For purchasing personnel, it is crucial to focus on the authenticity of certification documents and the completeness of material reports. For engineers and technicians, scientific selection should be based on the actual usage environment and electrical parameters. Choosing truly compliant UL2468 cables not only reduces equipment failure rates but also significantly extends product lifespan, enhancing overall system stability and safety.
