"I'm Gao Mingfu, the Quality Director of TRIUMPH CABLE. I'm here to introduce RVV cables under the CCC standard, covering their definition, structure, applicable standards, performance parameters, and quality identification methods.”
Through this comprehensive exposition, TRIUMPH CABLE aims to provide customers with systematic knowledge about RVV cables, helping them make scientific decisions in product selection, use, and research and development. As a commonly used cable in the electrical field, RVV cables that comply with the CCC standard offer reliable guarantees in terms of safety and quality. In-depth research on them helps enhance the stability and safety of electrical systems in equipment.
In modern electrical systems, wires and cables serve as crucial carriers for power transmission and signal transfer. Their quality and performance directly affect the stable operation and safety of the systems. As a widely used flexible cable, RVV cables play a significant role in connecting various electrical equipment and in wiring projects. The CCC standard, as China's compulsory product certification system, imposes strict requirements on the production and quality control of RVV cables, ensuring they meet national safety and technical specifications and safeguard consumer rights and public safety. A deep understanding of RVV cables under the CCC standard is of great significance for optimizing electrical system design, ensuring project quality, and promoting the healthy development of the cable industry.
RVV cables are fully named as copper-core polyvinyl chloride (PVC) insulated and PVC sheathed flexible cables. Here, "R" represents a flexible conductor structure, indicating that they have good flexibility and are suitable for scenarios requiring frequent bending or complex wiring spaces. "V" stands for polyvinyl chloride (PVC) material, which is used for both the insulation layer and the sheath. PVC has excellent insulation properties, certain mechanical strength, and chemical corrosion resistance, effectively protecting the internal conductor, ensuring stable current transmission, and shielding the cable from damage by external environmental factors.
The naming of RVV cables follows specific rules. Taking the common model "RVV 300/500V 2×1.5" as an example, "RVV" clearly defines the basic type of the cable. "300/500V" indicates its rated voltage, meaning the cable can operate safely under a phase voltage of 300V and a line voltage of 500V. This is a key parameter for measuring the cable's insulation performance and applicable voltage level. "2×1.5" means that there are two cores ("2"), and the nominal cross-sectional area of each core is 1.5 square millimeters ("1.5"). The core cross-sectional area determines the cable's current-carrying capacity, and different application scenarios require the reasonable selection of the core cross-sectional area based on the load current.

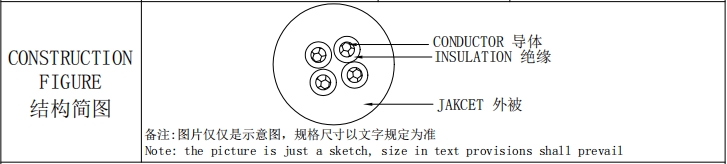

The conductor of an RVV cable is usually made of multiple strands of bare copper wires twisted together, conforming to the GB/T3956-2008 standard. For example, a 0.75 square millimeter core may be composed of several fine copper wires with a diameter of about 0.2 millimeters twisted together. This multi-strand twisted structure gives the cable good flexibility. During bending, each copper wire can slide relative to others, reducing internal stress concentration and preventing conductor breakage caused by bending. At the same time, it ensures the conductor's cross-sectional area, which is beneficial for improving power transmission efficiency and reducing resistance.
The insulation layer is made of PVC material and is tightly extruded around the conductor. It has excellent electrical insulation properties, effectively isolating the conductor from the external environment and preventing current leakage and short-circuit accidents. The thickness of the insulation layer varies according to the core cross-sectional area and rated voltage, following specific standard requirements. For example, for an RVV cable with a rated voltage of 300/500V and a 1.5 square millimeter core, the insulation layer thickness is generally not less than 0.7 millimeters. The insulation layer also has certain mechanical strength and abrasion resistance, providing a certain degree of protection against external mechanical damage and enhancing the cable's mechanical performance.
The sheath is also made of PVC and wraps around the insulated cores. Its main function is to provide additional mechanical protection for the internal cores, enhancing the overall strength of the cable and preventing damage to the insulation layer and conductor during installation and use due to external forces such as pulling, squeezing, and friction. The sheath material is specially formulated to have good tensile and tear resistance while maintaining a certain degree of flexibility, without affecting the overall flexibility of the cable. In addition, the sheath can provide a certain level of waterproof, dustproof, and anti-corrosion protection, extending the cable's service life.
The common rated voltage of RVV cables is 300/500V. The rated voltage determines the maximum voltage value that the cable can withstand. During use, it should be ensured that the actual voltage does not exceed the rated voltage; otherwise, the insulation layer may be broken down, leading to electrical accidents. For example, in household lighting and general electrical appliance connections, 300/500V RVV cables are commonly used.
Insulation resistance reflects the insulation layer's ability to prevent current leakage and is an important indicator for measuring the cable's insulation performance. According to relevant standards, at 20℃, the insulation resistance per kilometer of an RVV cable is generally not less than several megohms (the specific value depends on factors such as the core cross-sectional area). A higher insulation resistance indicates better insulation performance, less current leakage, and effective protection of the electrical system's safe operation and power transmission efficiency.
Conductor resistance is related to the conductor material, cross-sectional area, length, and temperature. RVV cables use high-purity oxygen-free copper as the conductor, which has relatively low resistance for the same cross-sectional area and length. For example, for a 1.5 square millimeter copper-core RVV cable, at 20℃, the conductor resistance per kilometer is generally not more than 12.1Ω. Lower conductor resistance can reduce power loss during transmission and lower the risk of cable heating.
Due to the use of multi-strand twisted conductors and soft PVC insulation and sheath materials, RVV cables have excellent flexibility. In practical applications, they can be easily bent into various shapes to adapt to complex wiring environments, such as wiring in narrow spaces or connecting electrical equipment that requires frequent movement.
The sheath and conductor structure design of RVV cables give them a certain degree of tensile strength. Generally, when subjected to a certain pulling force, the internal conductor of the cable will not break easily, and the insulation layer and sheath will not show damage or separation. Different specifications of RVV cables have different tensile strengths. For example, RVV cables with larger core cross-sectional areas have relatively higher tensile strength and can meet some application scenarios with high cable stretching requirements.
The normal operating temperature of ordinary RVV cables generally does not exceed 70℃. Within this temperature range, the cable's various performance parameters remain stable. When the temperature exceeds 70℃, the performance of the insulation layer and sheath materials may gradually decline, such as a decrease in insulation resistance and the materials becoming soft and brittle, which affects the cable's service life and safety.
The insulation layer and sheath of high-quality RVV cables should have a smooth and flat surface with uniform color, free of bubbles, impurities, granular sensations, or obvious unevenness. The copper core of the conductor should have a purplish-red metallic luster, uniform texture, and no oxidation blackening or broken wires. When the cable is repeatedly bent by hand, it should feel flexible and elastic, and there should be no whitening or cracking at the bent parts of the insulation layer and sheath.
Use tools such as micrometers, projectors, two-dimensional measuring instruments, or vernier calipers to measure the core cross-sectional area, insulation layer thickness, sheath thickness, and cable outer diameter. The measured values should comply with the product's nominal specifications and relevant standard requirements. For example, for a core with a nominal cross-sectional area of 1.5 square millimeters, the actual measured diameter of a single copper wire and the number of copper wires should be used to calculate the cross-sectional area, which should be within the allowable error range of the standard. The insulation layer and sheath thickness should also meet the corresponding standard regulations.
Use professional electrical testing equipment, such as DC resistance bridges, insulation resistance testers, and withstand voltage testers, to test the conductor resistance, insulation resistance, and voltage withstand performance of RVV cables. The test results should comply with relevant standard regulations. For example, the conductor resistance should not exceed the standard value at the specified temperature, the insulation resistance should be high enough, and during a short-term withstand voltage test at several times the rated voltage, the cable should not show breakdown or flashover phenomena.

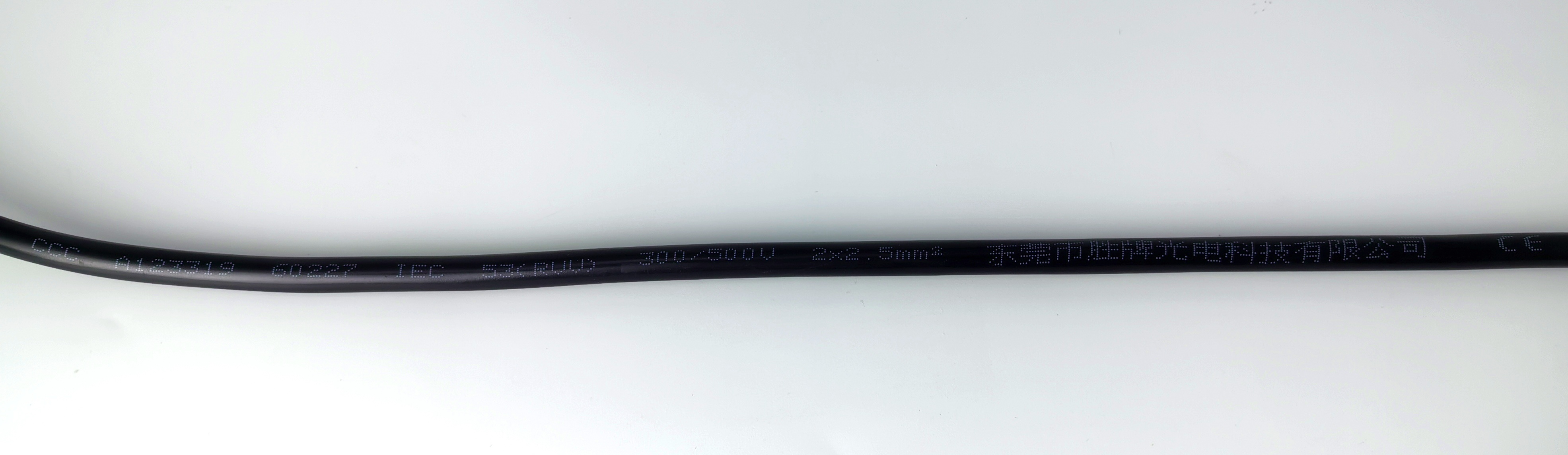

The surface of genuine CCC-standard RVV cables should be clearly printed with the CCC certification mark, the manufacturer's name or trademark, product model, rated voltage, core cross-sectional area, and other information. You can visit the official website of the Certification and Accreditation Administration of the People's Republic of China or the website of relevant certification bodies and enter the product's CCC certification number to query whether the product's certification information is authentic and valid, ensuring that the purchased products comply with the CCC standard requirements.
RVV cables under the CCC standard play an indispensable role in numerous electrical application fields due to their unique structural design, excellent performance parameters, and strict quality control. From households to office spaces, from connecting ordinary electrical equipment to constructing security and intelligent systems, RVV cables provide a solid guarantee for the stable operation of various electrical systems with their safe, reliable, flexible, and convenient characteristics. Through in-depth research on their definition, structure, standards, performance, applications, and quality identification methods, relevant practitioners and consumers can select and use RVV cables more scientifically and accurately, promoting the healthy development of the electrical industry and enhancing the safety and reliability of electrical systems. In the future, with the continuous progress of technology and the increasing diversification of application requirements, RVV cables are expected to achieve further breakthroughs in material innovation and performance optimization to better adapt to complex and changing electrical environments.
