Technical Specifications & Features:
1.
Conductor
High-purity bare copper strands (Class 5/6 flexibility per IEC 60228).
Cross-sections: 16–400 mm² (e.g., 16 mm², 25 mm², 95 mm², 400 mm²).
2.

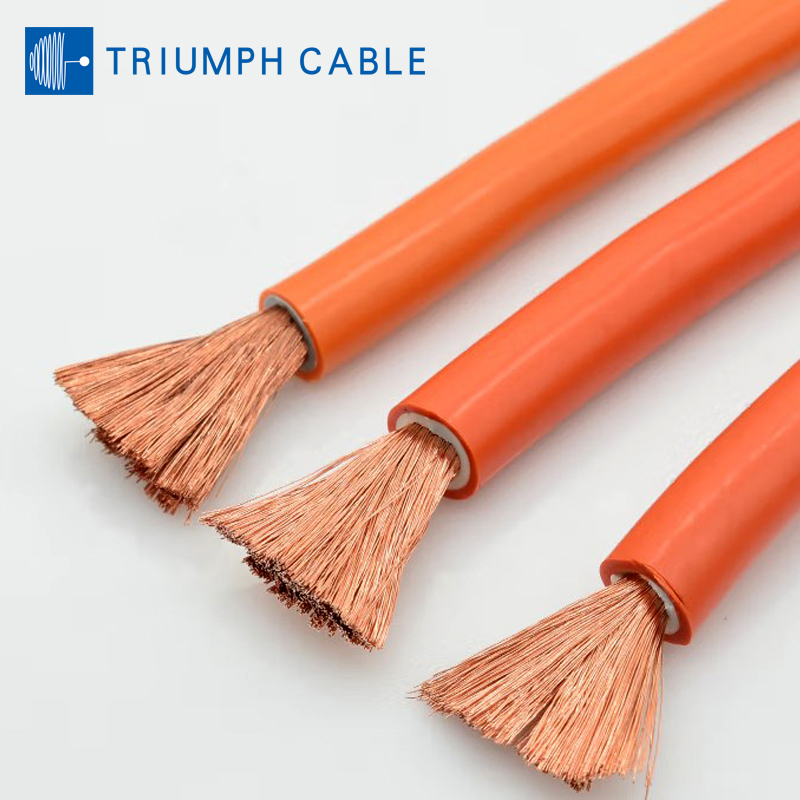

Insulation Structure
Double-layer PVC insulation:
Inner layer: White, eco-friendly PVC (enhanced dielectric strength).
Outer layer: Orange, abrasion-resistant PVC (UL-recognized anti-aging compound).
Key properties:
Acid/alkali resistance (compatible with electroplating baths, chemical exposure).
Oil resistance (ISO 1817 tested).
Temperature range: -30°C to +70°C (operational).
3.
Electrical & Mechanical Performance
Rated voltage: 450/750V (upgradable to 0.6/1 kV).
Bending radius: 4–6× cable diameter (flexible for fixed/mobile installations).
Low impedance & high current capacity (meets IEC 60228 for conductor resistance).
4.
Certifications & Standards
Compliant with GB/T 3956, IEC 60228 (conductor), IEC 60502 (insulation).
Optional: UL/CSA/RoHS certifications (for global markets).
5.
Typical Applications
Electroplating/electrolysis rectifier connections.
Welding machine outputs (compatible with TIG/MIG/arc welding).
PCB etching equipment, automated production lines.
Chemical plants, wastewater treatment facilities.
Key Advantages vs. Standard Welding Cables
Parameter
Acid-Resistant Double PVC Cable
Standard Welding Cable (e.g., RHW/RHW-2)
Chemical Resistance
Excellent (pH 3–12)
Limited (rubber degrades in chemicals)
Insulation Layers
2 (color-coded)
1 (single rubber/PVC)
Voltage Rating
Up to 1 kV
≤ 600V
Lifespan
15+ years (fixed installations)
3–8 years (subject to environment)
Cost Efficiency
Higher upfront, lower TCO
Lower upfront, higher replacement costs
Procurement Guidance
For corrosive environments (e.g., electroplating): Specify "Double PVC Insulated, Acid-Resistant Welding Cable" with orange outer sheath.
For heavy-duty welding: Ensure cross-sections ≥ 50 mm² (for 300–500A welders).
Certification note: Verify UL/CSA marks if required for North American projects.
Example Part No.:
PVC-ARWC-70-25 (25mm², 70°C rating, orange)
